Multi-Functional Aluminium Lighting Pole for Integrated Urban Applications

Multi-Functional Aluminium Lighting Pole for Integrated Urban Applications

– Product Type:  Conical Aluminium Multi-Functional Pole

– Material:  Aluminium 6063-T6

– Bottom Diameter:  Ø152 – 203 mm

– Top Diameter:  Ø89 – 140 mm

more about usGet a free quote

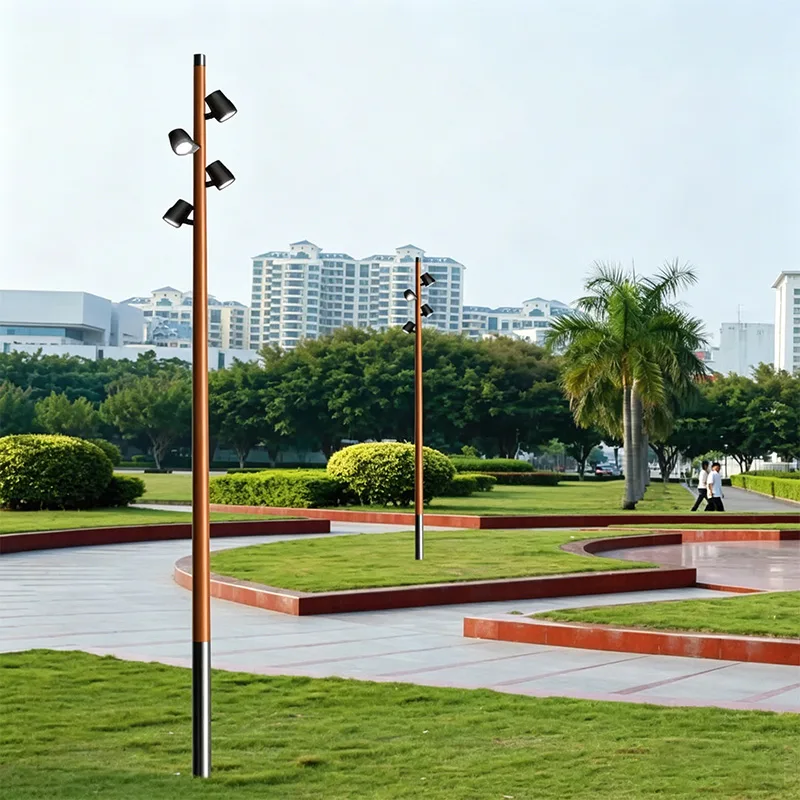

The Multi-Functional Aluminium Lighting Pole is designed for outdoor lighting projects that require a practical mounting structure for lighting fixtures and selected auxiliary equipment. By integrating compatible devices on one pole, it can help reduce the need for separate mounting structures and maintain a more organized streetscape.Featuring a tapered conical design, this integrated aluminium lighting pole is manufactured from 6063-T6 aluminium alloy.

Its lightweight construction and corrosion resistance make it suitable for a range of outdoor urban infrastructure applications, subject to the project environment and specified finish.

Technical Specifications

Product Name KOLN Multi-Functional Aluminium Lighting Pole
Material Aluminium Alloy 6063-T6
Pole Height 6–12 m
Bottom Diameter Ø152–203 mm
Top Diameter Ø89–140 mm
Wall Thickness 3.2–4.0 mm
Pole Shape Tapered Conical Profile
Installation Method Direct Burial / Rooted Installation
Access Door 100 × 400 mm
Surface Finish Satin Brushed / Anodizing / Powder Coating
Equipment Applications Lighting Fixtures and Compatible Auxiliary Devices, Subject to Design

Product Features and Advantages

Integrated Equipment Mounting

A multi-functional lighting pole provides a common structure for street lighting and compatible auxiliary equipment. The final mounting arrangement can be planned around the devices required for each installation, helping keep the overall streetscape neat and coordinated.

6063-T6 Aluminium Construction

This aluminium street light pole uses 6063-T6 aluminium alloy, offering a lightweight alternative to many conventional steel pole designs. Material selection and surface treatment should be matched to local weather conditions and project durability requirements.

Tapered Conical Design

The tapered pole profile creates a streamlined appearance for modern streets and public spaces. Its dimensions, height, and equipment arrangement should be selected according to the installation layout and applicable structural design requirements.

Outdoor Finish Options

Satin brushed, anodized, and powder-coated finishes offer different appearance options for an integrated lighting pole. The suitable treatment depends on the required appearance, exposure conditions, and project specification.

Project-Based Configuration

For a custom aluminium lighting pole, pole dimensions, equipment positions, access requirements, and installation details should be reviewed together. This helps ensure the proposed configuration aligns with the intended use rather than relying on a one-size-fits-all arrangement.

Applications

This multi-purpose aluminium pole can be considered for outdoor projects where lighting and additional equipment need to share a coordinated mounting structure.

  • Urban roads and streets: Mounting street lighting equipment along public road networks.
  • Smart city infrastructure: Supporting compatible lighting and monitoring devices where these functions are included in the project design.
  • CCTV and security installations: Providing a pole structure for lighting and compatible surveillance equipment, subject to mounting and loading requirements.
  • Public spaces and pedestrian areas: Coordinating lighting equipment within parks, plazas, and shared urban spaces.
  • Commercial developments: Providing a consistent pole design for streetscapes around offices, retail properties, and mixed-use developments.
  • Municipal infrastructure projects: Integrating selected pole-mounted equipment into planned public lighting upgrades.

Need a Multi-Functional Aluminium Lighting Pole?

Contact Morelux to discuss pole dimensions, equipment mounting positions, surface finish, installation requirements, and project quantities. As an aluminium lighting pole supplier, Morelux can review your drawings and specifications to help identify a suitable configuration for your outdoor lighting project.
