High-Power Solar Retrofit System for Urban Roadway Lighting

High-Power Solar Retrofit System for Urban Roadway Lighting

– Total Height:  8000 mm

– Pole Material:  Aluminium 6063-T6

– Surface Finish:  Outdoor metal powder coating

– Pole Diameter:  Ø114–178 mm (top to bottom)

– LED Power:  90 W

– Luminous Efficacy:  Up to 180 lm/W

more about usGet a free quote

The GYULA High-Power Solar Street Lighting Retrofit System is designed for roadway projects seeking to incorporate solar power into outdoor lighting infrastructure. Combining LED illumination, vertically arranged solar modules and battery storage, the system brings the main power components together in a coordinated lighting solution for urban and suburban applications.

The listed configuration uses a 90 W LED luminaire with Lumileds 3030 chips and a luminous efficacy of up to 180 lm/W. Four flexible HJT solar modules supply solar energy, while a LiFePO4 battery stores energy for nighttime operation. The aluminium pole structure is made from 6063-T6 alloy and finished with outdoor powder coating.

GYULA is intended for roadway lighting upgrades and infrastructure projects where energy supply, installation conditions and long-term maintenance need to be considered together. For retrofit applications, the existing pole structure and mounting compatibility should be assessed before installation.

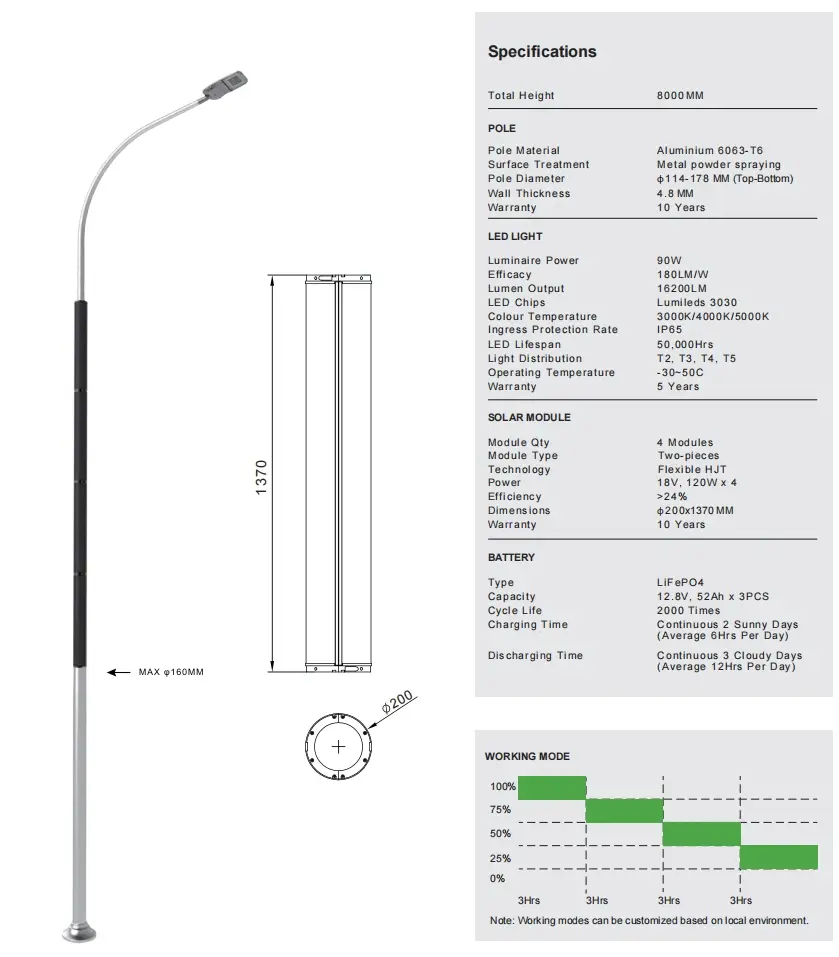

GYULA Solar Retrofit Lighting Specifications

Parameter Specification
Product Model GYULA
Product Type High-Power Solar Roadway Lighting Retrofit System
Listed Total Height 8000 mm
Pole Material Aluminium 6063-T6
Pole Diameter Ø114–178 mm, top to bottom
Surface Finish Outdoor powder coating
LED Power 90 W
LED Chip Type Lumileds 3030
Luminous Flux 16,200 lm
Luminous Efficacy Up to 180 lm/W
Color Temperature 3000 K / 4000 K / 5000 K
Solar Technology Flexible HJT modules
Solar Module Configuration 4 modules, 18 V 120 W each
Battery Type LiFePO4
Ingress Protection IP65

Specifications reflect the listed product configuration. Confirm battery capacity, operating autonomy, solar charging performance, mounting interfaces and other project-critical details with Morelux before ordering.

System Design and Main Components

High-Efficiency LED Lighting for Roadways

GYULA uses a 90 W LED lighting system with Lumileds 3030 chips. The listed luminous efficacy reaches up to 180 lm/W, with a stated output of 16,200 lumens. Available color temperature options are 3000 K, 4000 K and 5000 K, allowing the lighting specification to be matched to the project design.

Actual road illumination depends on pole spacing, mounting height, road width, luminaire optics and the applicable lighting requirements. A project-specific lighting calculation should be completed before the system is selected for a roadway.

Vertically Arranged Flexible HJT Solar Modules

The system uses four flexible HJT solar modules, each specified at 18 V and 120 W. Their vertical arrangement is a defining feature of the design, differing from conventional systems that rely on a single flat panel mounted above the luminaire.

Solar energy production varies with geographic location, sunlight exposure, shading, module orientation and weather conditions. These factors should be considered when determining whether the system can meet the required nightly lighting schedule.

LiFePO4 Battery Energy Storage

A LiFePO4 battery system stores energy collected during daylight hours for use after dark. Battery capacity, charge management and the required backup period are important factors when specifying off-grid roadway lighting.

For projects with extended operating hours or limited winter sunlight, request confirmation of the battery configuration, expected autonomy and system performance under the local solar conditions. These details are essential for assessing suitability before deployment.

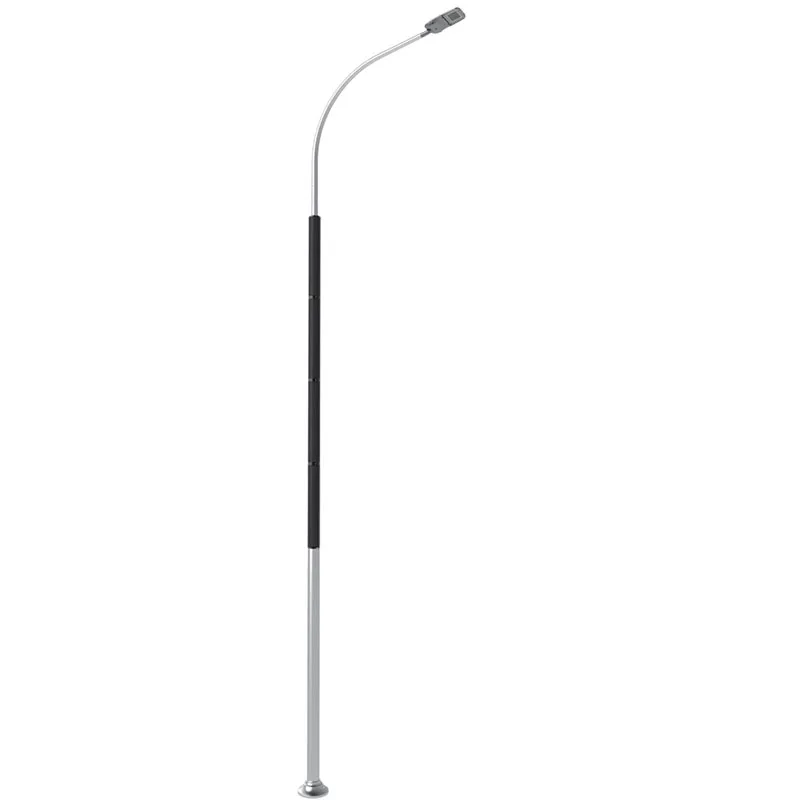

Aluminium Pole Structure with Outdoor Finish

The listed pole structure uses 6063-T6 aluminium alloy, with a stated total height of 8,000 mm and a diameter tapering from Ø114 mm to Ø178 mm. An outdoor powder-coated finish provides a defined surface treatment for exterior installation.

Pole dimensions, structural loading, foundation requirements and mounting arrangements should be reviewed against the intended site conditions. Where an existing pole is to be retained, its condition and compatibility with the proposed solar modules and lighting equipment must be verified.

IP65 Protection for Outdoor Installation

The listed system has an IP65 ingress protection rating. This rating indicates protection against dust ingress and water jets under specified test conditions. It does not by itself establish suitability for every climate or installation environment; temperature range, corrosion exposure, wind loading and maintenance access should also be considered.

Where Can the GYULA Solar Retrofit System Be Used?

Urban Roadway Modernization

GYULA can be evaluated for urban road lighting projects that aim to introduce solar-powered equipment into an existing or redesigned lighting layout. Compatibility with the current pole structure, required illumination levels and available solar exposure should be checked during project planning.

Suburban Roads and Collector Streets

For suburban routes and collector roads, the system may be considered where the lighting design and solar resource support the required operating schedule. Pole spacing, road geometry and battery autonomy should be confirmed before specifying the equipment.

Industrial Parks and Business Zones

Internal roads, access routes and outdoor circulation areas within industrial parks may be suitable for assessment, subject to the project’s illumination and structural requirements. The aluminium pole dimensions and mounting details should be coordinated with the site layout.

Public Infrastructure Upgrade Projects

Municipalities, infrastructure contractors and lighting distributors can evaluate solar retrofit systems as part of wider street lighting renewal programs. The feasibility review should cover the condition of existing assets, installation access, solar exposure, maintenance arrangements and total project requirements.

Planning a Solar Street Lighting Retrofit

Retrofitting solar lighting into an existing roadway requires more than selecting a luminaire and solar module. The original pole, foundation, equipment loads, local weather conditions and required lighting schedule all affect system suitability.

Before requesting a quotation, prepare the following project information where possible:

  • Existing installation: Pole height, diameter, mounting arrangement, condition and available drawings.

  • Lighting requirements: Road classification, target illumination, operating hours and preferred color temperature.

  • Solar conditions: Project location, shading, module exposure and seasonal sunlight considerations.

  • Battery requirements: Expected nightly operating duration and required backup autonomy.

  • Structural information: Wind exposure, equipment weight, mounting loads and foundation details.

  • Project quantity: Number of lighting points, installation schedule and delivery destination.

If the project requires reuse of existing poles, provide photographs, measurements and structural information for a compatibility review. Reuse should only proceed after the pole and mounting system have been confirmed suitable for the proposed equipment.

1

Solar Roadway Lighting Solutions from Morelux

Morelux manufactures aluminium and steel lighting poles and supplies pole solutions for outdoor lighting projects. For solar roadway lighting enquiries, project drawings and technical requirements can be reviewed to clarify the proposed pole configuration, equipment interfaces and finishing requirements.

For larger infrastructure orders, early confirmation of the LED specification, solar module arrangement, battery capacity, mounting details and delivery requirements helps establish a clear basis for technical review and quotation.

Request a Quote for the GYULA Solar Retrofit System

Planning a solar street lighting upgrade for an urban road, suburban route or infrastructure development?

Send Morelux the project location, required lighting performance, installation details and estimated quantity. If you intend to retain existing poles, include their dimensions and available drawings so compatibility can be assessed.

Contact Morelux to discuss the GYULA high-power solar roadway lighting system and your project requirements.
