Outdoor lighting projects often fail not because of the fixture but because water, corrosion, or electrical surges compromise the pole system beneath it. For commercial patios, hospitality spaces, schools, civic areas, and premium residential sites, pole specification is a safety decision as much as a design choice. This guide explains how waterproofing is engineered through IP ratings, gaskets, cable glands, drainage paths, coatings, and corrosion-resistant materials. It also frames the practical lightning-safety measures project teams should consider, including grounding, bonding, and surge protection. With the right technical review, buyers can reduce maintenance risk, extend service life, and source poles that perform reliably in exposed outdoor environments.

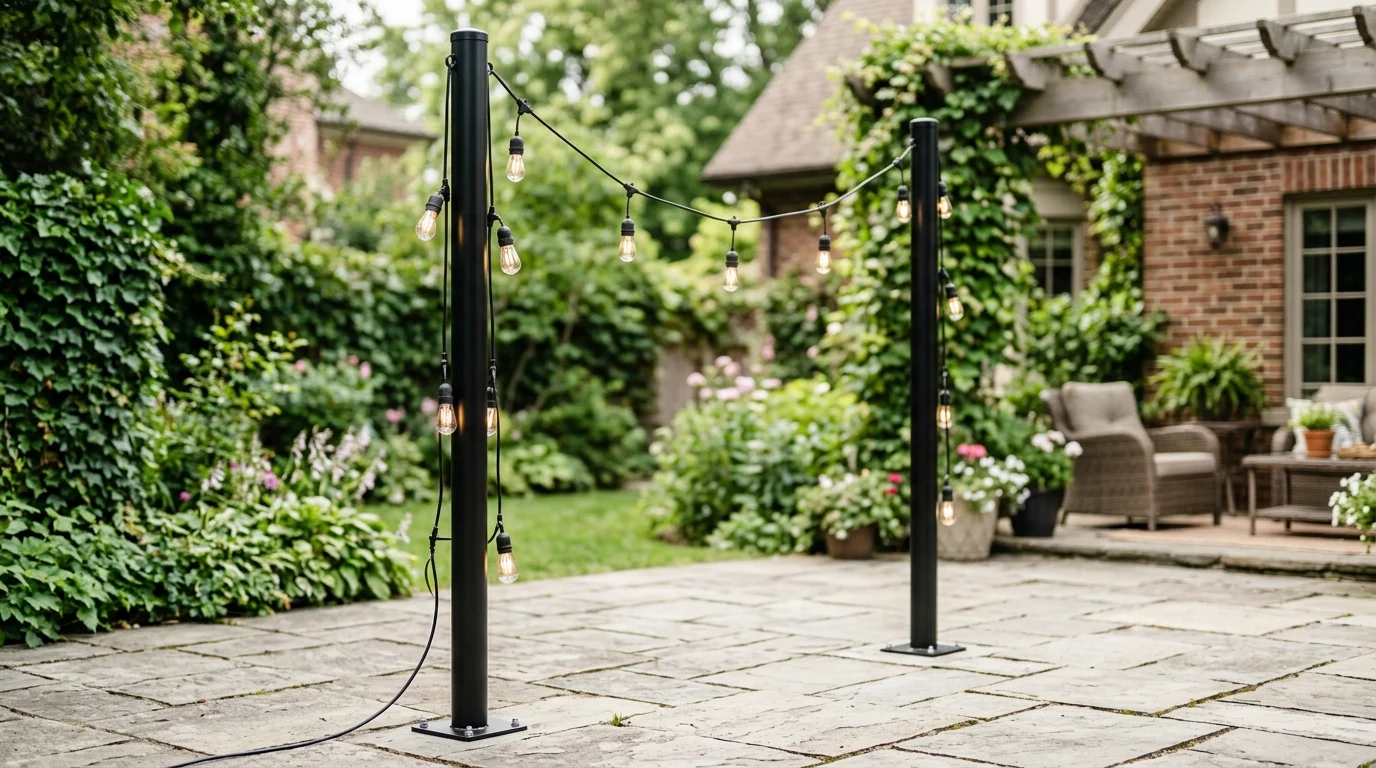

Specifying Waterproof Patio Light Poles
When outfitting commercial, hospitality, or high-end residential spaces with patio light poles, a rigorous approach to environmental resilience is essential. Because these structures operate permanently in exposed outdoor environments, their ability to withstand moisture ingress and electrical anomalies directly dictates their operational lifespan and safety profile. Specifying the correct infrastructure means looking beyond aesthetic finishes to evaluate the structural and mechanical barriers that prevent catastrophic internal failures.
Waterproofing in this context is not a single feature but a cumulative system of material choices, mechanical seals, and architectural geometries. When these systems fail, the resulting internal moisture accumulation leads to accelerated oxidation, electrical shorts, and eventual structural compromise.
What Makes a Patio Light Pole Waterproof
The waterproofing efficacy of a patio light pole relies heavily on its structural integrity and the precision of its mechanical seals. A truly waterproof pole integrates closed-cell elastomeric gaskets, precision-machined joints, and specialized cable entry glands. Standard recreational poles may survive mild, intermittent rainfall, but commercial-grade waterproofing requires engineered barriers capable of resisting dynamic environmental pressures. For example, a pole rated to withstand 120 mph wind loads must also maintain its seal integrity when those winds drive rain horizontally against access panels and luminaire tenons (the top mounting posts where fixtures attach).
Site Conditions That Increase Water Ingress Risk
Environmental context heavily dictates the required level of waterproofing. Coastal installations face extreme risks due to salt-laden moisture, where chloride deposition rates—often cited in marine engineering standards as exceeding 1.5 mg/m² per day in severe environments—can rapidly degrade standard silicone seals and accelerate galvanic corrosion. Similarly, regions experiencing frequent freeze-thaw cycles present severe challenges; any moisture that breaches the pole’s exterior can freeze, expand, and force microscopic fissures in welded seams or base plates to widen, compounding the ingress risk over successive seasons.
How Pole Design Affects Waterproofing Performance
The architectural geometry of the pole itself plays a critical role in moisture management. Seamless extruded tubular designs inherently offer fewer ingress points compared to square poles constructed with longitudinal welded seams. Furthermore, the design must account for capillary action, where water is drawn into tight spaces. High-performance poles utilize overlapping drip edges at luminaire junctions and elevated base plate designs to ensure that standing water on the patio surface cannot pool around critical electrical entry points.
Key Waterproofing Specifications
Ensuring long-term performance requires teams to evaluate specific, standardized metrics rather than relying on generic “weatherproof” marketing claims. The technical specifications surrounding ingress protection, material composition, and failure point mitigation provide a quantifiable baseline for comparing different patio light pole systems.
IP Ratings, Gaskets, Cable Entries, and Drainage
The Ingress Protection (IP) rating system is the primary standard for evaluating water resistance. While IP ratings are tested under controlled laboratory conditions and field performance can vary, IP65 is generally the minimum acceptable threshold for exposed patio light poles, certifying protection against low-pressure water jets (6.3mm nozzle delivering 12.5 liters per minute). In environments subject to heavy flooding or high-pressure washing, IP67 components may be necessary. Beyond the IP rating, the system relies on high-grade EPDM (Ethylene Propylene Diene Monomer) gaskets at all access panels, combined with precisely engineered weep holes at the pole base. These weep holes are critical; they allow inevitable internal condensation—caused by temperature differentials between the pole’s interior and exterior—to drain safely rather than pooling inside the shaft.
| IP Rating | Water Protection Level | Recommended Application |
|---|---|---|
| IP54 | Splashing water from any direction | Covered patios, highly sheltered areas |
| IP65 | Low-pressure water jets | Standard exposed patios, general commercial |
| IP66 | High-pressure water jets | Coastal areas, patios requiring power-washing |
| IP67 | Temporary submersion (up to 1m) | Flood-prone installations, ground-level junction boxes |
Corrosion-Resistant Materials and Finishes
The longevity of waterproofing seals is inextricably linked to the corrosion resistance of the underlying materials. Aluminum alloy 6061-T6 is heavily favored for its natural oxide layer that resists degradation even if the outer finish is scratched. When steel is specified for higher tensile strength, it must be hot-dip galvanized to a minimum thickness of 3 mils (75 microns) to prevent base metal oxidation. Furthermore, architectural powder coatings should be applied at a uniform thickness of 3 to 5 mils over a zinc-rich primer. If the pole material corrodes, the structural mating surfaces for the gaskets will pit and flake, immediately compromising the watertight seal.
Common Water Ingress Failure Points
Even highly rated poles possess inherent vulnerabilities that require strict quality control. Handhole covers located near the base are frequent failure points; thermal cycling can cause gasket compression set, a condition where the material can lose up to 40% of its elasticity over a 5-year period depending on environmental extremes, resulting in a loose seal. Another critical vulnerability is the luminaire tenon joint at the top of the pole. If the mating tolerance between the pole and the light fixture is too loose, wind-driven rain will bypass the primary seal. Finally, subterranean conduit entries must be fully sealed with duct seal putty or specialized expanding foam to prevent groundwater from wicking up into the pole’s interior electrical cavity.
Lightning Safety and Electrical Protection
Because patio light poles are vertically prominent, electrically conductive structures situated in open areas, they act as natural targets for atmospheric electrical discharges. A comprehensive safety strategy must address both direct lightning strikes and the secondary transient voltage surges that can travel through the patio’s underground electrical distribution network.
Bonding, Grounding, and Surge Protection Requirements
Effective lightning safety relies on a low-impedance path to earth. Standard engineering practices require grounding the pole to an electrode system, typically utilizing an 8-foot copper-clad steel ground rod with a minimum diameter of 5/8 inch driven into the earth adjacent to the pole base to achieve a ground resistance of less than 25 ohms. To protect the sensitive LED drivers and smart lighting controllers housed within or atop the pole, Surge Protection Devices (SPDs) are mandatory. These SPDs should be rated for a minimum discharge current of 10kA to 20kA, capable of clamping transient voltage spikes before they destroy the luminaire electronics. Proper bonding ensures that all non-current-carrying metal parts of the pole are electrically continuous, preventing hazardous touch voltages during a fault.
Electrical Codes and Local Compliance Standards
Compliance with local and international electrical codes is non-negotiable for commercial liability and safety. In North America, the National Electrical Code (NEC) Article 250 governs grounding and bonding requirements, establishing strict resistance thresholds that must be met even if it requires driving multiple ground rods in poor soil conditions. Furthermore, the luminaires and internal wiring must comply with UL 1598, while the installed SPDs must meet UL 1449 standards. Adherence to these codes ensures that the installation will pass municipal inspections and perform safely under fault conditions.
Integrated vs. Separate Lightning Protection
For standard commercial patios, lightning protection is generally integrated into the electrical grounding system; the metallic pole itself acts as the strike receptor, and the heavy-gauge bonding jumper safely directs the current to the grounding electrode. However, in highly sensitive or expansive outdoor venues, separate lightning protection systems may be deployed. These might include Early Streamer Emission (ESE) terminals—specialized lightning rods designed to proactively intercept strikes—or traditional Franklin rods mounted on dedicated, taller masts independent of the lighting poles. While separate systems provide an umbrella of protection over the entire patio area, integrated grounding remains the most cost-effective and code-compliant baseline for protecting the specific light pole infrastructure.
Evaluation and Procurement Criteria
Finding the optimal patio light poles requires balancing initial capital expenditure against long-term durability and maintenance overhead. Decision-makers must evaluate competing materials and mechanical features through the lens of their specific site requirements, ensuring that the chosen hardware delivers both aesthetic value and robust environmental resilience.
Comparing Pole Materials and Waterproofing Features
The choice of pole material fundamentally alters both the waterproofing strategy and the electrical safety profile. Aluminum offers an excellent strength-to-weight ratio and superior natural corrosion resistance, making it ideal for wet or coastal environments. Hot-dip galvanized steel provides maximum rigidity for high-wind zones but relies entirely on its exterior coating to prevent rust-induced seal failures. Fiberglass composite poles present a compelling alternative for specific niches; they offer zero risk of galvanic corrosion and possess high dielectric strength, meaning they do not conduct electricity or attract lightning in the same manner as metallic poles. However, this non-conductivity may conflict with certain local code requirements that mandate an intentional lightning attraction path, and fiberglass can suffer from UV degradation over time if not protected by specialized gel coats.
| Material Type | Corrosion Resistance | Lightning Conductivity | Base Cost Multiplier | Typical Lifespan |
|---|---|---|---|---|
| Aluminum (6061) | Excellent | High | 1.5x | 20+ Years |
| Galvanized Steel | Moderate (Coating Dependent) | High | 1.0x (Baseline) | 15-20 Years |
| Fiberglass Composite | Supreme | Zero (Insulator) | 1.8x | 25+ Years |
| Stainless Steel (316L) | Supreme | High | 3.0x | 30+ Years |
Total Cost of Ownership and Maintenance Access
Assessing the Total Cost of Ownership (TCO) requires looking past the initial purchase order. A baseline powder-coated steel pole might have an attractive initial cost, but in a high-humidity environment, it may require structural replacement within 7 to 10 years due to base plate corrosion. Conversely, a premium aluminum pole with IP66-rated handholes and marine-grade finishes represents a higher initial CapEx but can easily exceed a 20-year operational lifecycle with minimal intervention. Maintenance access is a critical TCO factor; handholes must be sized and positioned to allow technicians to easily inspect grounding lugs and replace SPDs without requiring specialized extraction tools or extended labor hours.
Quality Checks Before Purchase
Prior to finalizing a contract, rigorous quality checks and factory validations should be established. Buyers should request Factory Acceptance Testing (FAT) documentation from the manufacturer. Critical verifications include measuring the powder coat thickness with digital mil gauges to ensure the 3-5 mil specification is met uniformly across the pole shaft. Additionally, buyers should verify the durometer of the elastomeric gaskets—typically aiming for a Shore A hardness of 60 to 70, which provides the optimal balance of compressibility and tear resistance. Confirming the presence of internal grounding lugs welded directly to the pole interior is also essential for seamless NEC compliance.
Installation and Maintenance Best Practices
Even the highest-grade patio light pole will fail prematurely if subjected to improper installation or neglected maintenance. The lifecycle of waterproofing and electrical safety systems is highly dependent on the precision of the initial deployment and the consistency of subsequent field inspections.
Installation Steps That Support Waterproofing
Installation procedures must strictly preserve the pole’s engineered defenses. When setting the pole on its concrete base, contractors must ensure the anchor bolts are perfectly leveled. The use of non-shrink, structural grout beneath the base plate is common, but installers must be careful not to obstruct the factory-machined weep holes; blocking these channels traps internal condensation, leading to rapid internal corrosion. When securing the handhole covers, technicians must use calibrated torque wrenches. Fasteners should typically be tightened to manufacturer-specified torque settings (often around 15-20 in-lbs); over-torquing will crush and permanently deform the EPDM gaskets, while under-torquing leaves gaps for wind-driven rain to enter.
Inspection, Testing, and Maintenance Schedule
A proactive maintenance schedule is the definitive safeguard against environmental degradation. Facilities management should conduct visual inspections annually, checking for chalking or blistering in the powder coat and ensuring that all luminaire joints remain tight. The elastomeric gaskets on handholes and top caps should be proactively replaced every 5 to 7 years, though facilities managers should verify that user-replaced gaskets do not void the manufacturer’s warranty.
Key Takeaways
- Specify at least IP65 protection for exposed patio light poles, since this rating is tested against low-pressure water jets from a 6.3 mm nozzle at 12.5 liters per minute.
- Assess site exposure before selecting pole details, because coastal chloride deposition above 1.5 mg/m² per day can accelerate seal degradation and galvanic corrosion.
- Choose pole geometries with fewer ingress points, such as seamless extruded tubular designs, when long-term moisture resistance is a priority.
- Use closed-cell elastomeric gaskets, precision-machined joints, sealed cable glands, and overlapping drip edges to reduce water entry at access panels and fixture connections.
- Elevate base plates and manage drainage so standing patio water cannot pool around electrical entry points or critical mounting hardware.
- Verify that waterproof seals remain effective under real wind-driven rain conditions, especially where poles must withstand high wind loads such as 120 mph.
Frequently Asked Questions
What IP rating is recommended for exposed patio light poles?
IP65 is generally the minimum for exposed patio installations because it protects against low-pressure water jets. Coastal, high-wind, or washdown areas may require higher protection and project-specific engineering review.
Why do patio light poles fail in wet environments?
Failures usually come from moisture entering through access panels, cable entries, fixture joints, base plates, or weld seams. Once inside, water can cause corrosion, electrical shorts, freeze-thaw cracking, and structural degradation.
Are aluminum or steel poles better for waterproof patio lighting?
Both can perform well when correctly engineered, coated, sealed, and tested. The best choice depends on site exposure, wind loading, corrosion risk, finish requirements, and budget. Morelux can support custom aluminum and steel pole specifications.
How should patio light poles be protected from lightning?
Use proper grounding, bonding, and surge protection designed to local electrical codes and site risk. Lightning safety should be reviewed by a qualified electrical engineer, especially for open plazas, rooftops, coastal sites, and public projects.
What design details improve waterproofing performance?
Effective details include closed-cell gaskets, precision joints, sealed cable glands, drip edges, elevated base plates, corrosion-resistant coatings, and drainage paths that prevent standing water from reaching electrical entries.
