Architecturally Designed Aluminium Lighting Pole for Modern Urban Landscapes

Architecturally Designed Aluminium Lighting Pole for Modern Urban Landscapes

– Product Type: Conical Aluminium Roadway Pole

– Material: Aluminium 6063-T6

– Bottom Diameter: Ø152 – 178 mm

– Top Diameter: Ø89 – 114 mm

more about usGet a free quote

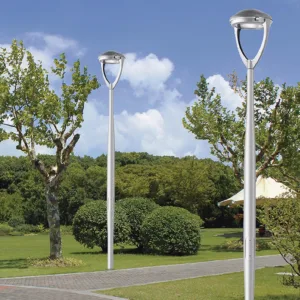

Designed for streetscapes where lighting equipment is part of the overall urban design, this architectural aluminium roadway lighting pole combines a tapered profile with a curved arm. Its clean outline suits modern roads, boulevards, public spaces and other projects that require lighting infrastructure to complement the surrounding architecture.

Manufactured from 6063-T6 aluminium, the conical aluminium roadway pole offers a practical option for projects seeking a contemporary appearance, corrosion-resistant material and a choice of installation and surface-finish configurations.

Conical Profile with a Curved Arm

The tapered shaft creates a gradual transition from the larger base to the narrower top, giving the pole a balanced appearance without the visual bulk of a uniform cylindrical structure. A curved arm extends the lighting point over the roadway or designated area, helping establish a coherent silhouette across streets and public spaces.

This curved-arm lighting pole is suited to projects where the form of the pole matters alongside its lighting function. It can be considered for urban road improvements, landscaped boulevards, pedestrian-oriented areas and architectural developments that call for a consistent streetscape design.

Tapered Aluminium Shaft

The conical form provides a streamlined profile and a clear visual transition from the base to the top of the pole.

Integrated Curved Arm

The curved arm gives the roadway lighting pole a distinctive outline and positions the luminaire away from the main shaft.

6063-T6 Aluminium

Aluminium construction offers corrosion resistance and a relatively low component weight, making it suitable for a range of outdoor lighting applications.

Multiple Finish Options

Satin brushing, anodizing and powder coating provide different surface appearances to suit project specifications and the surrounding environment.

Technical Specifications

The following specifications describe the available configuration range. Final dimensions and mounting details should be confirmed against the requirements of the project.

Product Type Conical Aluminium Roadway Lighting Pole
Material Aluminium 6063-T6
Pole Height 6–10 m
Bottom Diameter Ø152–178 mm
Top Diameter Ø89–114 mm
Wall Thickness 3.2–4.0 mm
Mounting Options Flange Mount / Rooted (Direct Burial)
Access Door 100 × 400 mm
Surface Finish Satin Brushed, Anodizing, Powder Coating
Arm Design Curved Arm

Aluminium Construction for Outdoor Lighting

Material selection affects the handling, finish and long-term appearance of an outdoor lighting pole. This aluminium street light pole uses 6063-T6 aluminium, a material commonly selected for extruded architectural and structural components. Its corrosion resistance makes it a useful option for outdoor settings, including urban locations and projects exposed to coastal conditions.

The final suitability of any pole depends on local wind loads, exposure conditions, luminaire dimensions, foundation design and project requirements. These factors should be reviewed when confirming the pole dimensions and mounting arrangement.

Mounting and Surface Finish

The pole can be specified for flange mounting or direct burial, depending on the site layout and foundation approach. Flange-mounted installations use a base connection to a suitable foundation, while rooted installations extend the pole section into the ground in accordance with the approved design.

Surface treatment can also be selected to suit the intended appearance and environmental conditions:

  • Satin brushed finish: A restrained metallic appearance for contemporary streetscapes.
  • Anodized finish: An aluminium surface treatment that supports a consistent architectural finish.
  • Powder coating: A choice for projects that require a specified colour and coordinated street furniture.

Applications

With its tapered shaft and curved arm, this architectural street light pole is suitable for a range of public-realm and roadway lighting schemes, subject to the required lighting design and structural assessment.

  • Urban streets and municipal roadway lighting projects
  • Boulevards and landscaped avenues
  • Commercial districts and mixed-use developments
  • Public plazas and pedestrian areas
  • Architectural projects requiring coordinated outdoor lighting equipment
  • Coastal and other outdoor environments where aluminium construction is appropriate

Specify an Aluminium Roadway Lighting Pole for Your Project

Pole height, shaft dimensions, mounting method, finish and luminaire arrangement should be selected according to the project drawings and site conditions. Share your required dimensions, installation details and finish preferences with Morelux to discuss a suitable configuration for your roadway or urban lighting project.

Discuss Your Project Requirements

Contact Morelux for information about aluminium roadway lighting poles, available configurations and project-specific requirements.

Contact Morelux
